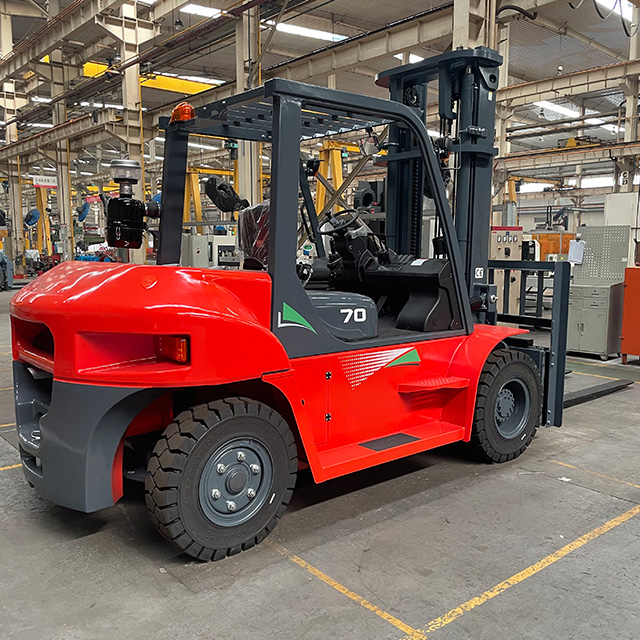

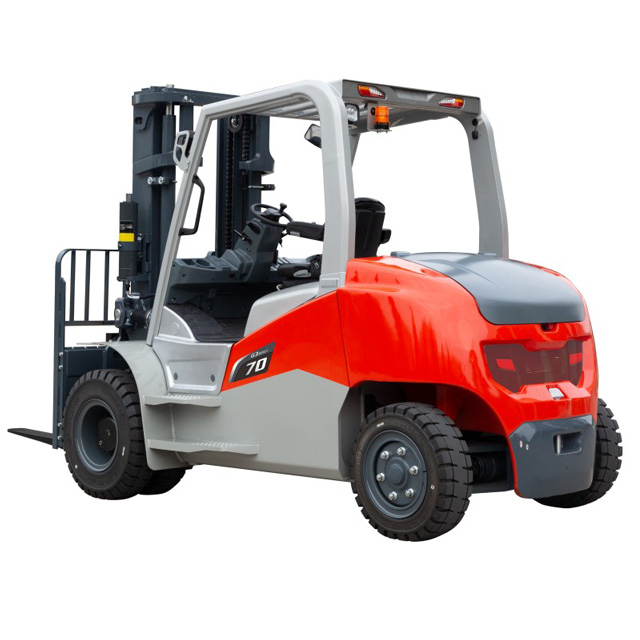

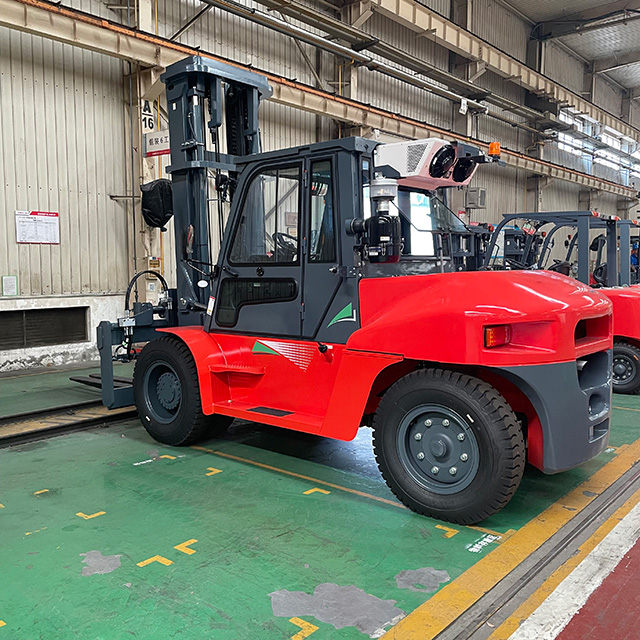

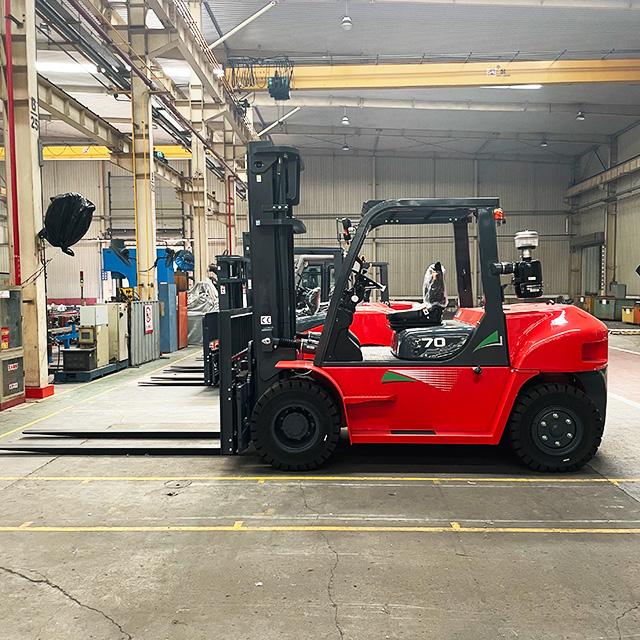

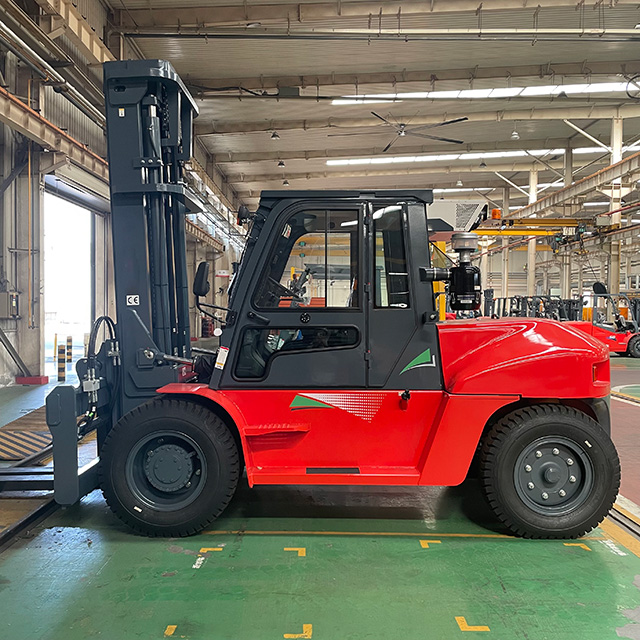

6-10 Ton Battery-Powered Counterbalanced Forklift
Product Introduction：
1.Efficient Performance
① Dual-Drive System: Delivers 25% stronger gradeability (up to 15% slopes)
② Dual-Port Charging: 80% charge in 1 hour with parallel charging
③ Energy Recovery: Regenerative braking saves 18% power
2.Smart Safety Systems
Auto Parking Brake:
Activates on slopes/inclines
Prevents unintended movement
Curve Speed Control: Automatically reduces speed during turns
Limit Cushioning: Prevents mast over-travel damage
Full OPS Protection: Seat-interlock and load moment control
3.Operator Comfort
Wide-View Mast: 40% larger visibility window
Silent Operation: Imported gear pump (<62dB)
Sync-Steer System: Compensates wheel/steering angle offset
Multi-Language Display: Shows real-time diagnostics (optional)
4.Reliability Engineered
Import Axles/Motors: 20,000-hour design life
Wet Disc Brakes: Maintenance-free stopping power
Arctic Proven: -20°C cold storage certified
Welded Tank Frame: 30% stronger structural integrity
5.Service Advantages
Bottom-Mount Battery: Tool-free access
Top-Mounted ECU: Optimized cooling + service access
Battery Flexibility: Compatible with both lithium/lead-acid
Technical Parameters:
Model | Unit | CPD60 | CPD70 | CPD85 | CPD100 |
Configuration number | GB2D | ||||
Rated Capacity | kg | 6000 | 7000 | 8500 | 10000 |
Rated Capacity | mm | 600 | 600 | 600 | 600 |
Standard mast rated lifting height | mm | 3000 | 3000 | 3000 | 3000 |
Overall length( without forks) | mm | 3437 | 3442 | 3650 | 3842 |
Overall length( without forks) | mm | 2045 | 2045 | 2165 | 2165 |
Max.gradeability(loaded /unloaded) | % | 19 | 18 | 18 | 15 |
Product Uses：
1.Warehousing & Logistics
①Palletized goods loading/unloading & stacking operations
②High-level racking access (up to 12m height)
③Cold storage operations (-30°C to +4°C environments)
2.Manufacturing
Production line material feeding
In-plant logistics circulation
Heavy component handling (3-5 ton models available)
3.Special Industries
Food & pharmaceutical (stainless steel anti-corrosion design)
Electronics cleanroom (anti-static configuration)
Airport cargo handling (low-noise eco-friendly operation)
