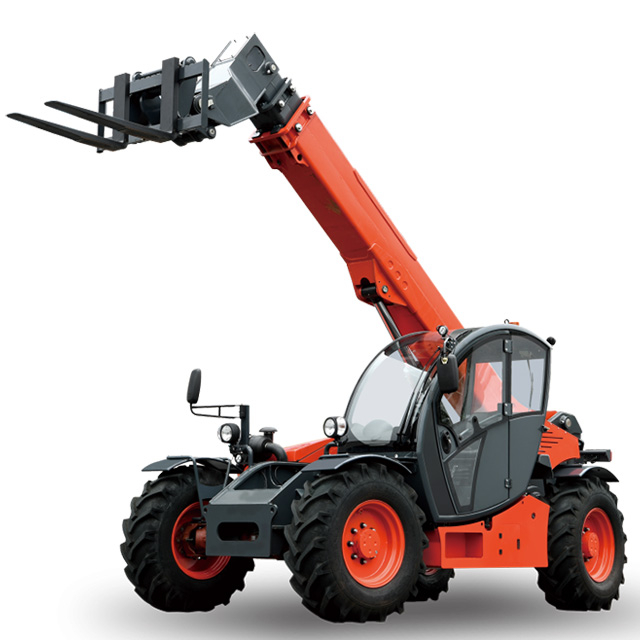

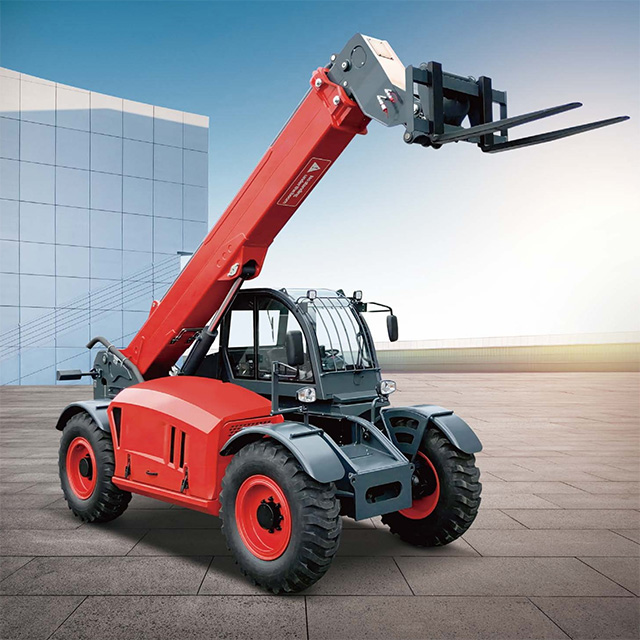

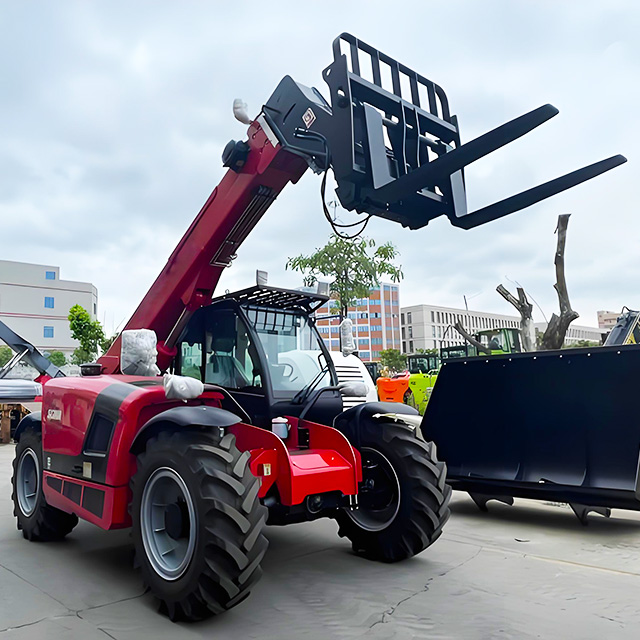

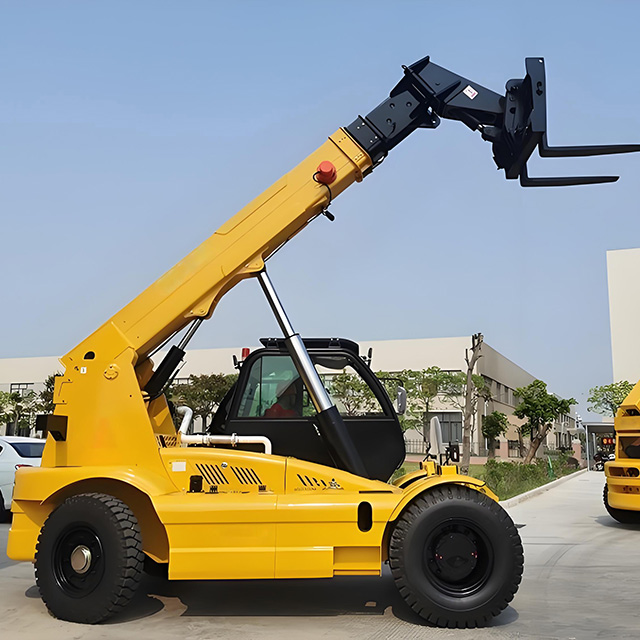

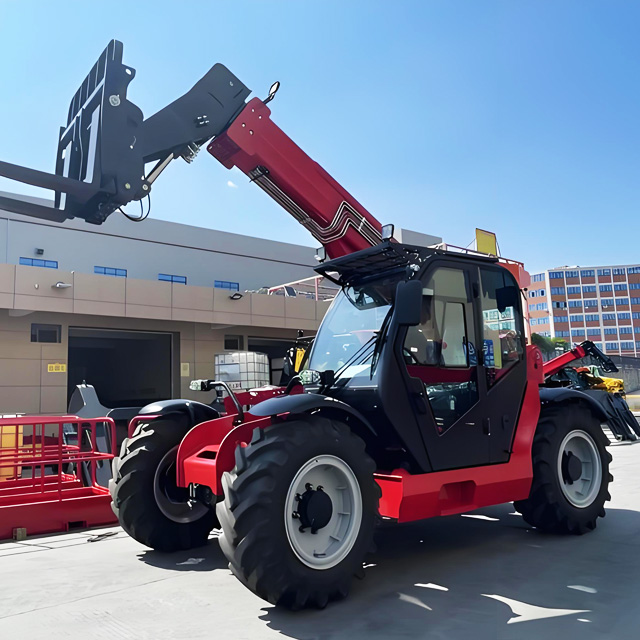

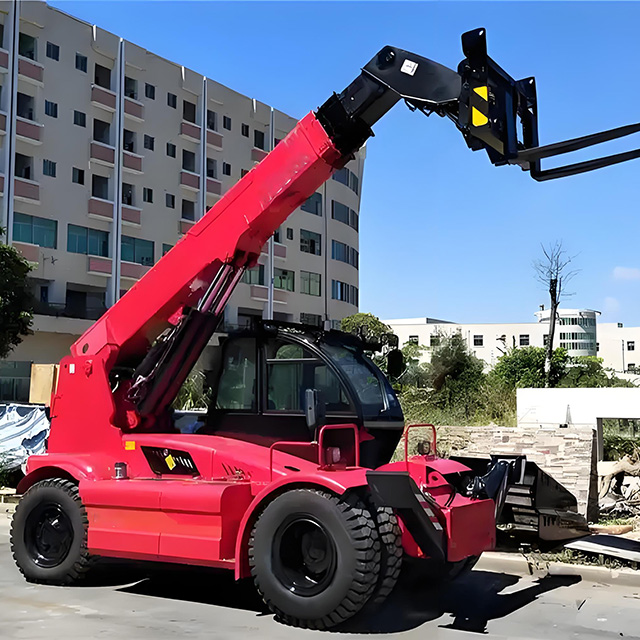

3.5-4 Ton Telescopic Handler Rough Terrain Forklift
Product Introduction：
1.Advanced Drive System
Hydrostatic 4WD Transmission:
① Auto-power distribution between working/walking functions
② Anti-stall control for smooth operation
③ 30% more efficient than mechanical drives
2.Precision Hydraulics
① Flow-Sharing System:
Enables simultaneous multi-operations
Electro-hydraulic proportional control for millimeter accuracy
② Smart Joystick:
Integrated auto-fork leveling
Single-hand control for both driving/loading
3.Power Options
① DEUTZ Engine: EU Stage IV emission standard
② Perkins Engine: China III emission standard
4.Steering Flexibility
① 3 Steering Modes:
② Front-wheel / 4-wheel / Crab steering (lateral movement)
5.Safety Systems
① Real-time Load Monitoring: Auto stop when overloaded
② Emergency Stop Button: One-press full system shutdown
③ Anti-Unexpected Movement: Safety interlock system
Optional Attachments
Adjustable Aerial Work Platform
Fixed Aerial Work Platform
Fixed Straight Lifting Arm
Self-lifting Straight Arm
Fixed Curved Lifting Arm
Self-lifting Curved Arm
Bucket
Technical Parameters:
Model | Unit | 35H46-84 | 35H77-113 | 40H51-90 | 40H88-125 | 35H77-116S | 35H112-150S | 40H88-128S | 40H130-170S | |||||||||||
Front Outrigger Support | Front Outrigger Lifting | Front Outrigger Support | Front Outrigger Lifting | Front Outrigger Support | Front Outrigger Lifting | Front Outrigger Support | Front Outrigger Lifting | |||||||||||||
Power | Diesel | |||||||||||||||||||
Operation Mode | Ride-on Type | |||||||||||||||||||
Transmission Mode | Hydrostatic Transmission | |||||||||||||||||||
Rated Capacity | kg | 3500 | 3500 | 4000 | 4000 | 3500 | 3500 | 3500 | 3500 | 4000 | 4000 | 4000 | 4000 | |||||||
Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |||||||
Maximum Forward Extension Distance | m | 4.6 | 7.7 | 5.1 | 8.8 | 7.7 | 7.6 | 11.2 | 6.9 | 8.8 | 8.8 | 13 | 8.7 | |||||||
Maximum Lifting Height | m | 8.4 | 11.3 | 9 | 12.5 | 11.6 | 11.3 | 15 | 14 | 12.8 | 12.5 | 17 | 16 | |||||||
Overall Length | m | 5.47 | 5.52 | 5.90 | 6.15 | 5.52 | 5.52 | 6.02 | 6.02 | 6.15 | 6.15 | 6.22 | 6.22 | |||||||
Overall Width | m | 2.4 | ||||||||||||||||||
Product Uses：
1. Construction Sector
2. Port & Logistics
3. Agricultural Applications
4. Emergency Services
5. Utility Maintenance
6. Heavy Industries
