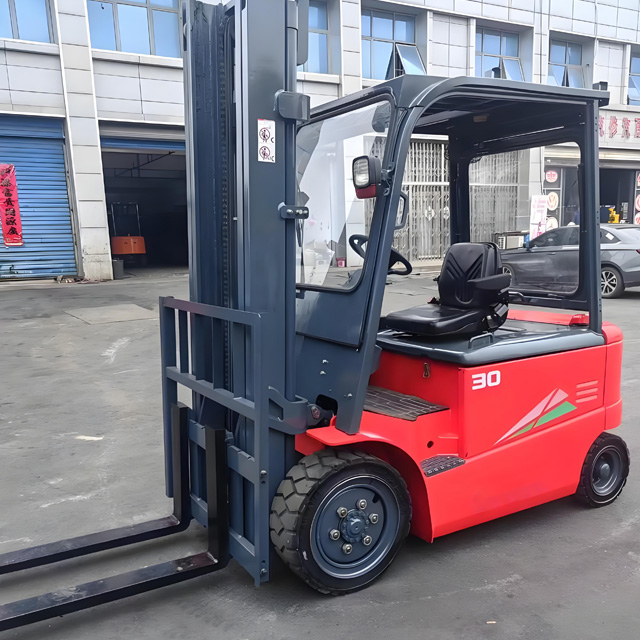

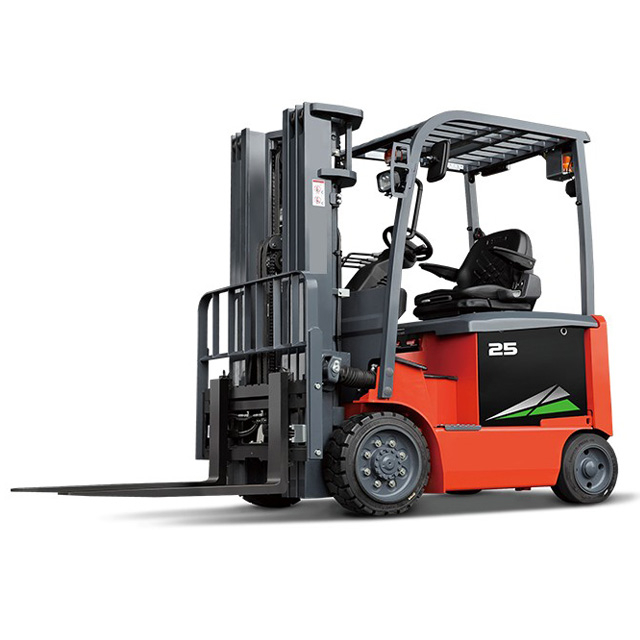

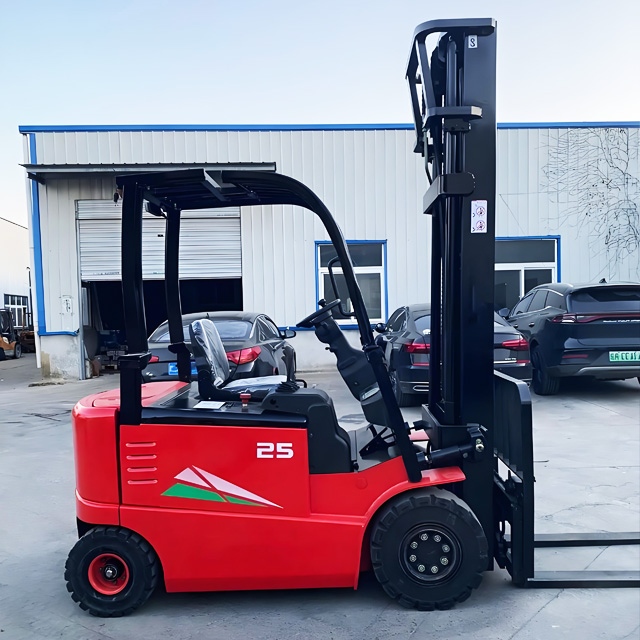

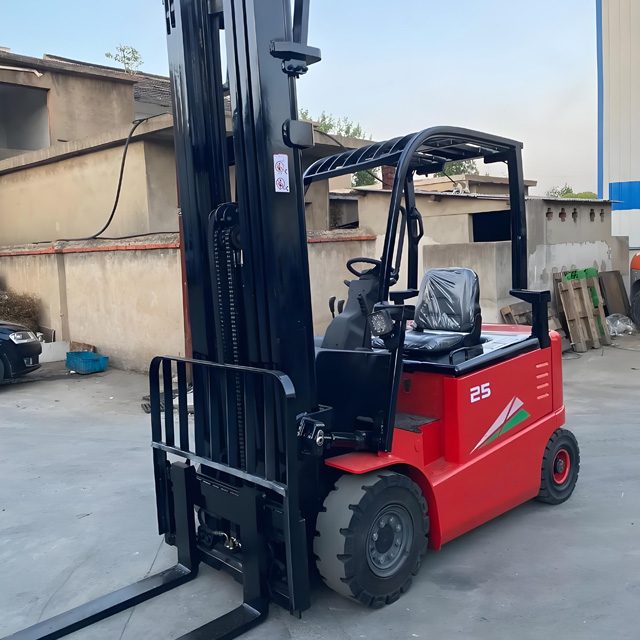

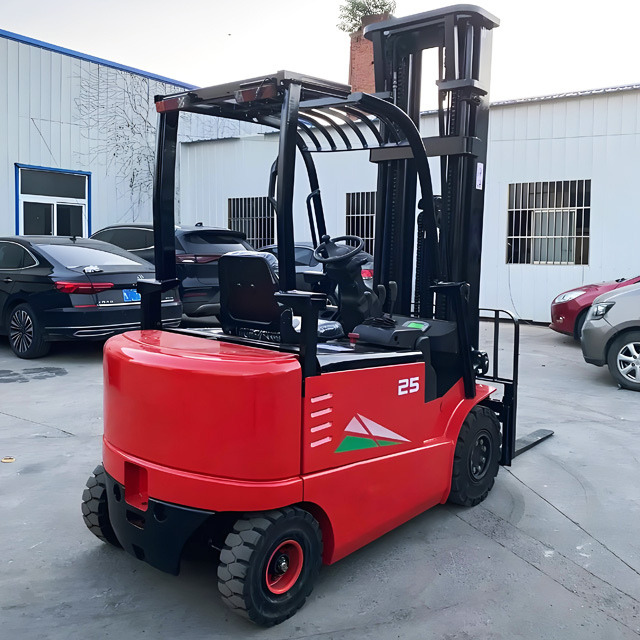

2-3.2 Ton Short Wheelbase AC Electric Counterbalanced Forklift
Product Introduction:
1. Enhanced Stability
◉ 3-Stage Drive Axle - 20% better longitudinal stability
◉ High-Mount Rear Axle - 15% improved lateral stability
2. Optimized Visibility & Space
✓ Small Steering Wheel + Right-Side Display - 30% wider forward visibility
✓ Expanded Cab - Features:
Arched overhead guard (headroom ↑25%)
Raised steering column (legroom ↑20%)
3. Superior Maneuverability
• Tight Turning Radius - 2.1m for confined spaces
• Fast Lift Speed - 0.45m/s (loaded)
• Strong Gradeability - 15% slopes at full capacity
4. Energy Efficiency
✅ Optimized Hydraulics - 15% lower energy consumption
✅ LED Lighting - 80% energy savings vs halogens
5. Operator Comfort
✓ Stabilizing Backrest - Anti-slip design for reversing
✓ Auto-Style Controls - Dual ergonomic levers
✓ Slide-Out Battery - Compatible with Li-ion/lead-acid
Technical Parameters:
Model | Unit | CPD20 | CPD25 | CPD25 | CPD30 | CPD32 |
Configuration number | GA2C(P) | GA2C(P) | GB2C(P) | GA2C(P) | GA2C(P) | |
Rated Capacity | kg | 2000 | 2500 | 2500 | 3000 | 3200 |
Rated Capacity | mm | 500 | 500 | 600 | 500 | 500 |
Standard mast rated lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
Overall length( without forks) | mm | 2155 | 2165 | 2265 | 2323 | 2341 |
Overall length( without forks) | mm | 1072 | 1072 | 1122 | 1122 | 1122 |
Max.gradeability(loaded /unloaded) | % | 17 | 17 | 17 | 15 | 15 |
Product Uses:
1. Warehousing & Logistics
① Palletized goods loading/unloading & stacking operations
② High-level racking access (up to 12m height)
③ Cold storage operations (-30°C to +4°C environments)
2. Manufacturing
Production line material feeding
In-plant logistics circulation
Heavy component handling (3-5 ton models available)
3.Special Industries
Food & pharmaceutical (stainless steel anti-corrosion design)
Electronics cleanroom (anti-static configuration)
Airport cargo handling (low-noise eco-friendly operation)
2-3.2 Ton Short Wheelbase AC Electric Counterbalanced Forklift
Product Introduction:
1. Enhanced Stability
◉ 3-Stage Drive Axle - 20% better longitudinal stability
◉ High-Mount Rear Axle - 15% improved lateral stability
2. Optimized Visibility & Space
✓ Small Steering Wheel + Right-Side Display - 30% wider forward visibility
✓ Expanded Cab - Features:
Arched overhead guard (headroom ↑25%)
Raised steering column (legroom ↑20%)
3. Superior Maneuverability
• Tight Turning Radius - 2.1m for confined spaces
• Fast Lift Speed - 0.45m/s (loaded)
• Strong Gradeability - 15% slopes at full capacity
4. Energy Efficiency
✅ Optimized Hydraulics - 15% lower energy consumption
✅ LED Lighting - 80% energy savings vs halogens
5. Operator Comfort
✓ Stabilizing Backrest - Anti-slip design for reversing
✓ Auto-Style Controls - Dual ergonomic levers
✓ Slide-Out Battery - Compatible with Li-ion/lead-acid
Technical Parameters:
Model | Unit | CPD20 | CPD25 | CPD25 | CPD30 | CPD32 |
Configuration number | GA2C(P) | GA2C(P) | GB2C(P) | GA2C(P) | GA2C(P) | |
Rated Capacity | kg | 2000 | 2500 | 2500 | 3000 | 3200 |
Rated Capacity | mm | 500 | 500 | 600 | 500 | 500 |
Standard mast rated lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
Overall length( without forks) | mm | 2155 | 2165 | 2265 | 2323 | 2341 |
Overall length( without forks) | mm | 1072 | 1072 | 1122 | 1122 | 1122 |
Max.gradeability(loaded /unloaded) | % | 17 | 17 | 17 | 15 | 15 |
Product Uses:
1. Warehousing & Logistics
① Palletized goods loading/unloading & stacking operations
② High-level racking access (up to 12m height)
③ Cold storage operations (-30°C to +4°C environments)
2. Manufacturing
Production line material feeding
In-plant logistics circulation
Heavy component handling (3-5 ton models available)
3.Special Industries
Food & pharmaceutical (stainless steel anti-corrosion design)
Electronics cleanroom (anti-static configuration)
Airport cargo handling (low-noise eco-friendly operation)
1.Q: How long can a lithium battery last? Is it prone to degradation?
A: The lifespan of a lithium battery is typically 2,000–3,000 charge-discharge cycles(approximately 5–8 years), far exceeding lead-acid batteries (500–1,000 cycles). Degradation is primarily influenced by usage habits. Avoid over-discharging (below 20% capacity), prolonged storage in high-temperature environments, or frequent fast charging. To extend battery life, it is recommended to charge as needed and maintain the charge level between 20%–80%.
2.Q: What to do if the battery fails to charge fully or charges slowly?
A: Check if the charger is compatible—lithium batteries require dedicated chargers (lead-acid battery chargers are incompatible). Low temperatures (<0°C) may reduce charging efficiency; charge indoors or use the battery’s preheating function. If the battery is aged (capacity below 80%), contact the manufacturer for inspection.
3.Q: Why do forklifts experience reduced power or shorter range in winter?
A:Lithium batteries naturally lose activity in extreme cold (below -10°C). Solutions: Preheat the battery in a room-temperature environment before charging, select lithium battery models with low-temperature heating functions, shorten single-use durations, and recharge promptly.
4.Q: What if the dashboard displays codes like "BMS fault" or "Overheating"?
A:
- Overheating alert: Pause use, allow cooling, then restart.
- Voltage anomaly: Check for loose battery connections.
- BMS fault: Contact after-sales service for Battery Management System repair.
Note: Take photos of error codes and contact manufacturer support immediately.
1.Q: How long can a lithium battery last? Is it prone to degradation?
A: The lifespan of a lithium battery is typically 2,000–3,000 charge-discharge cycles(approximately 5–8 years), far exceeding lead-acid batteries (500–1,000 cycles). Degradation is primarily influenced by usage habits. Avoid over-discharging (below 20% capacity), prolonged storage in high-temperature environments, or frequent fast charging. To extend battery life, it is recommended to charge as needed and maintain the charge level between 20%–80%.
2.Q: What to do if the battery fails to charge fully or charges slowly?
A: Check if the charger is compatible—lithium batteries require dedicated chargers (lead-acid battery chargers are incompatible). Low temperatures (<0°C) may reduce charging efficiency; charge indoors or use the battery’s preheating function. If the battery is aged (capacity below 80%), contact the manufacturer for inspection.
3.Q: Why do forklifts experience reduced power or shorter range in winter?
A:Lithium batteries naturally lose activity in extreme cold (below -10°C). Solutions: Preheat the battery in a room-temperature environment before charging, select lithium battery models with low-temperature heating functions, shorten single-use durations, and recharge promptly.
4.Q: What if the dashboard displays codes like "BMS fault" or "Overheating"?
A:
- Overheating alert: Pause use, allow cooling, then restart.
- Voltage anomaly: Check for loose battery connections.
- BMS fault: Contact after-sales service for Battery Management System repair.
Note: Take photos of error codes and contact manufacturer support immediately.
