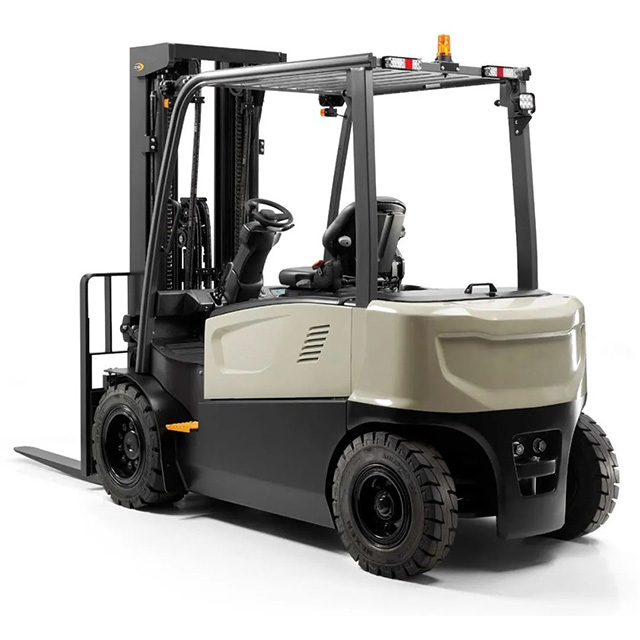

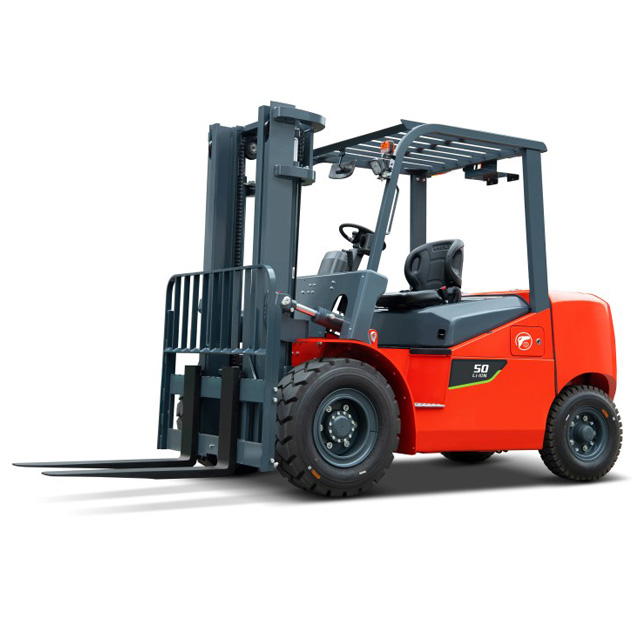

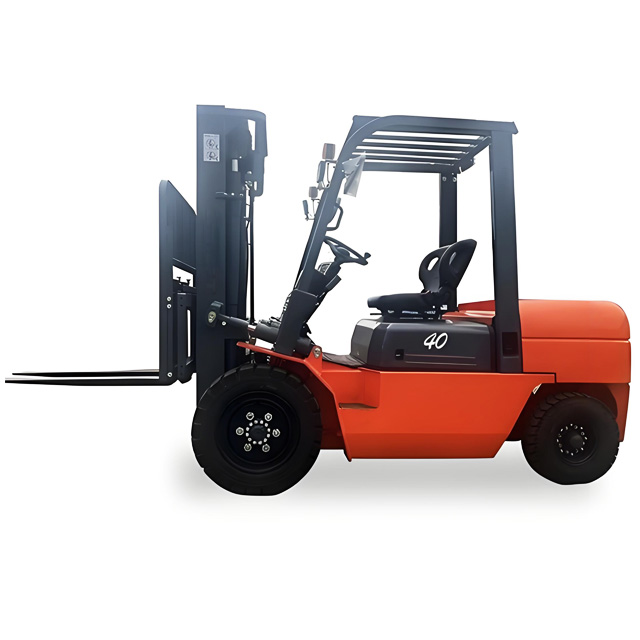

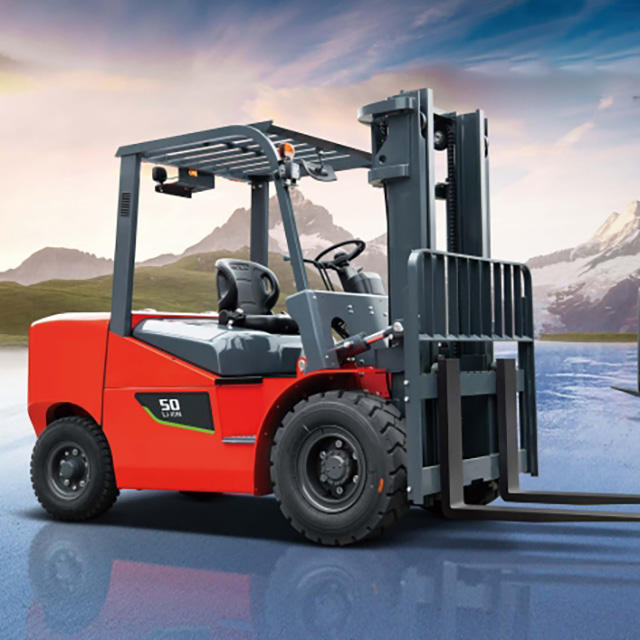

4-5 Ton Lithium-Ion Counterbalanced Forklift
Product Introduction:
1.Smart Safety System
① PES 3-Stage Adjustment – Multiple performance modes for different working conditions
② OPS Protection – Hydraulic burst protection & tilt auto-lock
③ Electrical Safety – Short-circuit/overheat/low-power/sequence protection
④ Parking Safety Alert – Prevents accidental movement
⑤ Anti-Rollback on Slopes – Slow creep warning
2.Comfort & Energy Saving
① Wide-View Mast & Rear Mirror – 30% better visibility
② Load-Sensitive Multi-Valve – Saves 15% energy with precise control
③ Driver Convenience – USB port, cup holder & semi-wrapped seat
④ Smooth Operation – Excellent micro-movement performance
3.Stable & Efficient
① Color Display – Real-time monitoring & alerts
② High-Ratio Parallel Axle – Compact, powerful & reliable
③ Large-Angle Steering Axle – Reduces turning radius
④ Synchronous Reluctance Motor – High efficiency at all speeds
4.Easy Maintenance
① Quick-Access Design – Pump/motor/ECU/DC-DC easily reachable
② Modular Electrical Box – Simplifies troubleshooting
Technical Parameters:
Model | Unit | CPD30 | CPD40 | CPD50 | CPD50 | |||||||
Configuration Number | A7LiK2-M | A7LiK2-S | A7LiK2-M | A7LiK2-S | A7LiK2-M | A7LiK2-S | A7LiK2-06M | A7LiK2-06S | ||||
Rated Capacity | kg | 4000 | 4500 | 5000 | 5000 | |||||||
Center Distance | mm | 500 | 500 | 500 | 600 | |||||||
Standard mast rated lifting height | mm | 3000 | 3000 | 3000 | 3000 | |||||||
Overall length( without forks) | mm | 3250 | 3250 | 3250 | 3300 | |||||||
Overall Width | mm | 1530 | 1530 | 1530 | 1530 | |||||||
Max.gradeability(loaded /unloaded) | % | 20 | 18 | 19 | 16 | 18 | 15 | 18 | 15 | |||
Product Uses:
1.Warehousing & Logistics
①Palletized goods loading/unloading & stacking operations
②High-level racking access (up to 12m height)
③Cold storage operations (-30°C to +4°C environments)
2.Manufacturing
Production line material feeding
In-plant logistics circulation
Heavy component handling (3-5 ton models available)
3.Special Industries
Food & pharmaceutical (stainless steel anti-corrosion design)
Electronics cleanroom (anti-static configuration)
Airport cargo handling (low-noise eco-friendly operation)
4-5 Ton Lithium-Ion Counterbalanced Forklift
Product Introduction:
1.Smart Safety System
① PES 3-Stage Adjustment – Multiple performance modes for different working conditions
② OPS Protection – Hydraulic burst protection & tilt auto-lock
③ Electrical Safety – Short-circuit/overheat/low-power/sequence protection
④ Parking Safety Alert – Prevents accidental movement
⑤ Anti-Rollback on Slopes – Slow creep warning
2.Comfort & Energy Saving
① Wide-View Mast & Rear Mirror – 30% better visibility
② Load-Sensitive Multi-Valve – Saves 15% energy with precise control
③ Driver Convenience – USB port, cup holder & semi-wrapped seat
④ Smooth Operation – Excellent micro-movement performance
3.Stable & Efficient
① Color Display – Real-time monitoring & alerts
② High-Ratio Parallel Axle – Compact, powerful & reliable
③ Large-Angle Steering Axle – Reduces turning radius
④ Synchronous Reluctance Motor – High efficiency at all speeds
4.Easy Maintenance
① Quick-Access Design – Pump/motor/ECU/DC-DC easily reachable
② Modular Electrical Box – Simplifies troubleshooting
Technical Parameters:
Model | Unit | CPD30 | CPD40 | CPD50 | CPD50 | |||||||
Configuration Number | A7LiK2-M | A7LiK2-S | A7LiK2-M | A7LiK2-S | A7LiK2-M | A7LiK2-S | A7LiK2-06M | A7LiK2-06S | ||||
Rated Capacity | kg | 4000 | 4500 | 5000 | 5000 | |||||||
Center Distance | mm | 500 | 500 | 500 | 600 | |||||||
Standard mast rated lifting height | mm | 3000 | 3000 | 3000 | 3000 | |||||||
Overall length( without forks) | mm | 3250 | 3250 | 3250 | 3300 | |||||||
Overall Width | mm | 1530 | 1530 | 1530 | 1530 | |||||||
Max.gradeability(loaded /unloaded) | % | 20 | 18 | 19 | 16 | 18 | 15 | 18 | 15 | |||
Product Uses:
1.Warehousing & Logistics
①Palletized goods loading/unloading & stacking operations
②High-level racking access (up to 12m height)
③Cold storage operations (-30°C to +4°C environments)
2.Manufacturing
Production line material feeding
In-plant logistics circulation
Heavy component handling (3-5 ton models available)
3.Special Industries
Food & pharmaceutical (stainless steel anti-corrosion design)
Electronics cleanroom (anti-static configuration)
Airport cargo handling (low-noise eco-friendly operation)
1.Q: How long can a lithium battery last? Is it prone to degradation?
A: The lifespan of a lithium battery is typically 2,000–3,000 charge-discharge cycles(approximately 5–8 years), far exceeding lead-acid batteries (500–1,000 cycles). Degradation is primarily influenced by usage habits. Avoid over-discharging (below 20% capacity), prolonged storage in high-temperature environments, or frequent fast charging. To extend battery life, it is recommended to charge as needed and maintain the charge level between 20%–80%.
2.Q: What to do if the battery fails to charge fully or charges slowly?
A: Check if the charger is compatible—lithium batteries require dedicated chargers (lead-acid battery chargers are incompatible). Low temperatures (<0°C) may reduce charging efficiency; charge indoors or use the battery’s preheating function. If the battery is aged (capacity below 80%), contact the manufacturer for inspection.
3.Q: Why do forklifts experience reduced power or shorter range in winter?
A:Lithium batteries naturally lose activity in extreme cold (below -10°C). Solutions: Preheat the battery in a room-temperature environment before charging, select lithium battery models with low-temperature heating functions, shorten single-use durations, and recharge promptly.
4.Q: What if the dashboard displays codes like "BMS fault" or "Overheating"?
A:
- Overheating alert: Pause use, allow cooling, then restart.
- Voltage anomaly: Check for loose battery connections.
- BMS fault: Contact after-sales service for Battery Management System repair.
Note: Take photos of error codes and contact manufacturer support immediately.
