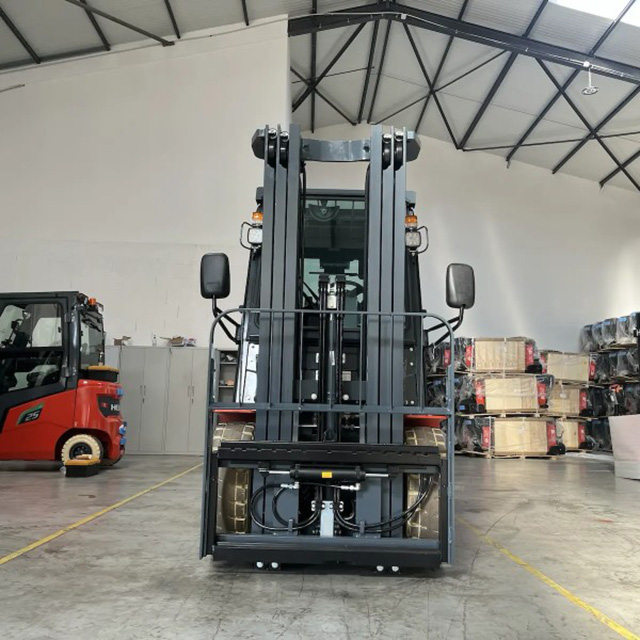

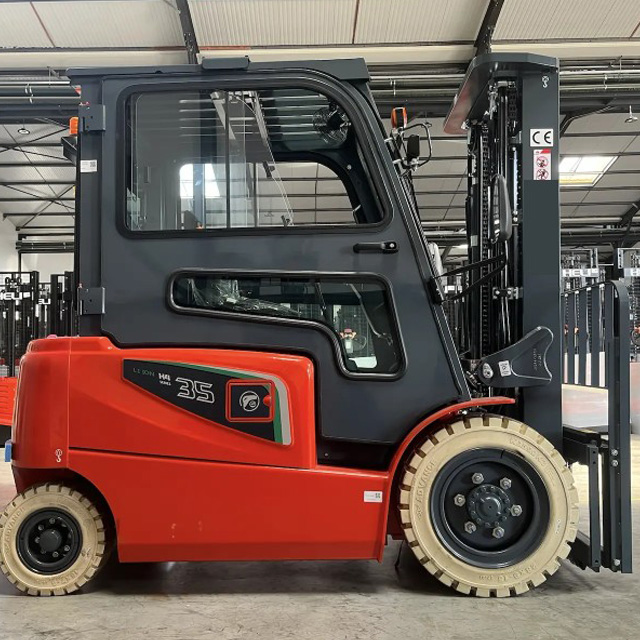

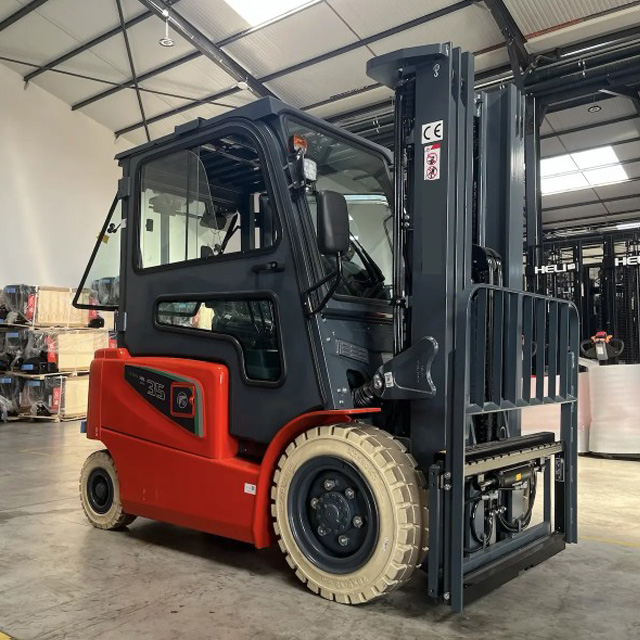

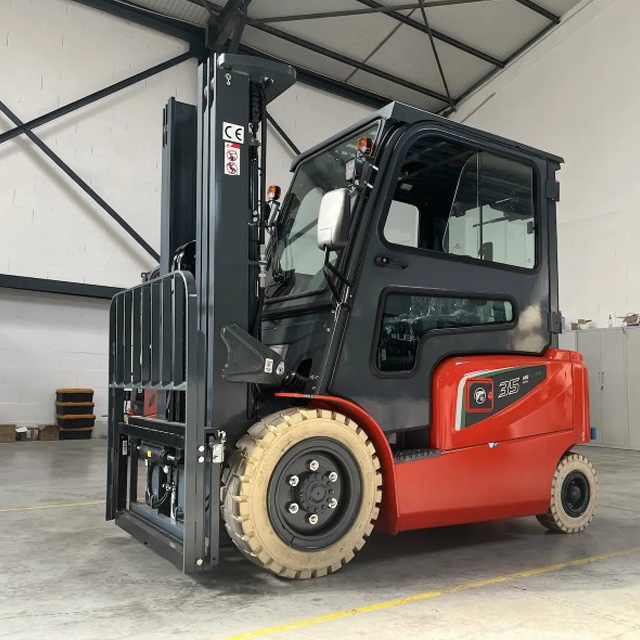

3-3.8 Ton Lithium-Ion Forklift
Product Introduction：
Core Advantages
① All-Weather Performance – Reliable operation in extreme temperatures (-20°C to 50°C)
② Superior Safety – Automotive-grade high-voltage protection (IP67)
③ Ultra-Economical – 60% lower operating costs vs. diesel
④ Low Noise & Vibration – <65 dB for quiet warehouse operation
⑤ Proven Reliability – Key components tested for 10,000+ hours
Product Highlights
1. Hybrid Durability
① ICE Chassis & Mast – Borrows proven diesel forklift structure (stable & rugged)
② Automotive-Grade Powertrain – Integrated electric drive unit (compact & efficient)
2. High-Efficiency Electric Drive
① Permanent Magnet Motor – 20% lighter, 10% more efficient vs. induction motors
② Smart Thermal Management – Ensures safe long-duration operation
③ Regenerative Braking – Recovers 15% energy
3. Advanced Safety Systems
◉ High-Voltage Protection –
① Insulation monitoring
② Overvoltage/undervoltage cutoff
③ Automatic power-off when opened (battery & ECU)
◉ Low-Voltage Smart Wake-Up – Reduces standby power loss
4. Maintenance Optimized
① Lithium Battery – Zero maintenance vs. lead-acid
② Shared Parts with ICE Models – Easy repairs & lower spare costs
Technical Parameters:
Model | Unit | CPD30 | CPD35 | CPD38 |
Power | VEDDER35S2 | |||
Battery | 153.6V/165Ah/230Ah | |||
Driving mode | Sit-on type | |||
Rated Capacity | kg | 3000 | 3500 | 3800 |
Rated Capacity | mm | 500 | 500 | 500 |
Standard mast rated lifting height | mm | 3000 | 3000 | 3000 |
Overall length( without forks) | mm | 2744 | 2750 | 2800 |
Overall length( without forks) | mm | 1225 | 1225 | 1225 |
Max.gradeability(loaded /unloaded) | % | 25 | 21 | 20 |
Product Uses：
1.Warehousing & Logistics
① Palletized goods loading/unloading & stacking operations
② High-level racking access (up to 12m height)
③ Cold storage operations (-30°C to +4°C environments)
2.Manufacturing
Production line material feeding
In-plant logistics circulation
Heavy component handling (3-5 ton models available)
3.Special Industries
Food & pharmaceutical (stainless steel anti-corrosion design)
Electronics cleanroom (anti-static configuration)
Airport cargo handling (low-noise eco-friendly operation)
